La tension: 220V / 380V
La dimension (L * W * h): 2,73 m * 1,66 m * 1,8 m
L taille de tasse: 6-16, 16-22
Voltage: 220V/380V
Dimension (L*W*H): 2.73M*1.66M*1.8M
Cup size: 6-16oz,16-22oz
Les détail de produits:
La condition: nouveau
Le type de produit: la tasse de papier effectuant la machine
Le type de traitement: la machine de pliage de papier
Lieu d'origine: Shanghai, la Chine (continentale)
Le nom de la marque: SMC
Le numéro du modèl: SC-105
La tension: 220V/380V
La puissance (W): 10KW
La dimension (L * W * h): 2,73 m * 1,66 m * 1,8 m
Le poids: 3600KGS, 3600KG
La certification:
Une garantie: d'un an
Le service après-vente fourni: les ingénieurs sernt disponibles pour les machines de service outre-mer
Le nom: la ttasse de papier jetable faisant la machine
L'alimentation d'électricité: 380V/220V
La vitesse: 90-100pcs/min
Le matériel de tasse: papier simple PE/double PE enduit.
La taille de tasse: 6-16, 16-22
La spécifications du papier: 210-380/㎡
La puissance générale: 10KW
La source de gaz: 0,4 m3/min
La dimensions d'emballage: 2750 * 1660 * mm
Products detail:
Condition: New

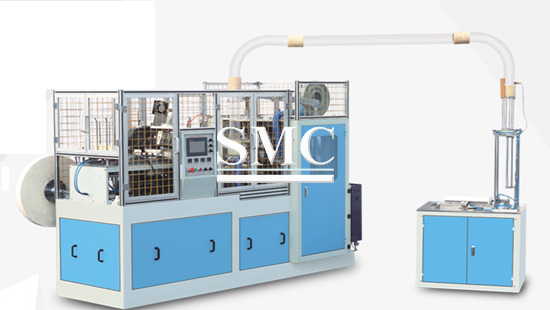

Product Type: Paper Cup Making Machine
Processing Type: Paper Folding Machine
Place of Origin: Shanghai, China (Mainland)
Brand Name: SMC
Model Number: SC-105
Voltage: 220V/380V
Power(W): 10KW
Dimension (L*W*H): 2.73M*1.66M*1.8M
Weight: 3600KGS, 3600KG
Certification: CE
Warranty:1 Year
After-sales Service Provided: Engineers available to service machinery overseasName: Disposable Paper Cup Making Machine
Electricity Supply: 380V/220V
Speed: 90-100pcs/min
Cup Material: Single PE/Double PE coated paper.
Cup size: 6-16oz,16-22oz
Paper specifications: 210-380g/㎡
General Power: 10KW
Gas Source: 0.4m3/min
Packing Dimensions: 2750*1660*1800mm
Des spécification et détails du produit:
specification and product details:
Une méthode de traitement, organigramme
Processing method, flow chart
Organigramme de production:
Production flow chart:
Des applications: Fabriquer les coupes en papier
Des avantages:
1: la structure ouverte de came d'indexation avançée, précision de fabrication, assurant et stabilité de l'opération de machine.
2: Le Swiss Import Leiter et un système d'air chaud, des performances stables, en haute efficacité de production.
3: En utilisant les profils structuraux de haute résistance, la structure compacte de machine stable.
4: Toute l'utilisation de la production normalisée de pièces, polyvalence, excellent échange eability, entretien facile de l'équipement.
5: utilisant le système automatique de lubrification assure le fonctionnement à grande vitesse de la machine pendant longtemps sans une coupure.
6: L'isolement automatique d'arrêt.
Applications: Making cup
Advantages:
1: Advanced indexing cam open structure,manufacturing precision,ensuring and stability of the machine operation.
2: Swiss import Leiter flameless hot air system, stable performance, high production efficiency.
3: Using high-strength structural profiles, compact machine structure stable.
4: All use of standardized parts production,versatility,excellent interchange eability ,easy maintenance of equipment .
5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.
6: Automatic shutdown isolation.
